Top Features to Look for in High-Quality Electronic Test Equipment Racks

Setting up a professional-grade testing environment isn’t just about the instruments you use—it’s also about how those instruments are housed and organized. Whether you're outfitting a new RF lab, upgrading an EMC testing facility, or simply aiming to optimize performance, electronic test equipment racks play a vital role.

These racks are more than metal enclosures—they provide the backbone for stable operation, structured wiring, and thermal control. But with so many options available, how can you tell which rack is truly worth the investment?

Let’s dive into the top features that define high-quality electronic test equipment racks—and why they matter for your testing success.

Key Takeaways

• A high-quality electronic test equipment rack enhances testing efficiency, safety, and organization.

• Essential features include modular design, efficient thermal management, and built-in cable management.

• Customization, compliance with standards, and integration support are critical for complex setups.

• Long-term reliability and future scalability should be considered when choosing a rack.

• The right vendor ensures optimized design, manufacturing quality, and lifecycle support.

1. Sturdy and Scalable Frame Construction

At the foundation of any good rack is its mechanical durability. High-quality test equipment racks are typically constructed from heavy-gauge steel or aluminum to provide maximum rigidity and load support.

Look for:

• Welded or reinforced frames to prevent vibration

• High weight-bearing capacity

• Resistance to corrosion and environmental factors

Scalability is also key. Your test requirements may evolve, and a good rack should accommodate future growth with modular rails, removable panels, and adjustable mounting depths.

2. Intelligent Thermal Management

Testing generates heat—lots of it. Without proper airflow and cooling, equipment can suffer performance degradation, shutdowns, or even long-term damage.

Premium racks will feature:

• Integrated fan trays or active cooling systems

• Perforated doors or side panels for passive airflow

• Dedicated paths for hot and cold air segregation

This thermal efficiency supports longer test cycles and protects your investment over time.

3. Organized and Accessible Cable Management

Cables are the veins of your test system, and in cluttered racks, they can easily become a point of failure or inefficiency. High-end racks offer thoughtful cable management features such as:

• Rear cable ducts and lacing bars

• Grommeted openings to reduce wear

• Tool-less access panels for fast service

• Color-coded cable trays for signal separation

Proper cable organization also improves airflow and eases future upgrades or repairs.

4. EMI Shielding and Signal Integrity Support

In RF and EMC testing environments, electromagnetic interference is a constant concern. A well-engineered test rack should minimize noise through:

• Conductive coatings or paint finishes

• Proper grounding and bonding provisions

• Sealed panel joints to reduce EMI leakage

This is especially important when housing oscilloscopes, signal generators, or other sensitive test equipment.

5. Flexible Mounting and Integration Options

Test environments often require integration with specialized gear—custom fixtures, oscilloscopes, power supplies, routers, or PLCs. A high-quality rack will offer:

• Standard 19-inch mounting compatibility

• Sliding shelves and telescopic drawers

• Custom cutouts for I/O ports or bulkhead connectors

• Rear access doors for service and expansion

This level of flexibility ensures that your test station remains adaptable across applications—whether it’s telecom, aerospace, or automotive.

6. Built-In Power Distribution and Safety Features

Modern test racks should simplify power delivery and ensure safety through features like:

• Pre-installed PDUs (Power Distribution Units)

• Circuit protection via breakers or surge suppressors

• Clearly labeled wiring for AC/DC lines

• Emergency power cutoffs in critical setups

These safeguards not only protect equipment but also enhance operational uptime and technician safety.

7. Compliance with Industry Standards

Compliance isn’t optional—especially in regulated industries like medical electronics, automotive, or defense. Your test equipment rack should meet standards such as:

• IEC 60297 for rack dimensions

• RoHS/REACH for material safety

• ISO 9001 manufacturing quality standards

Choosing a compliant rack reduces the risk of project delays or system integration problems during audits or certifications.

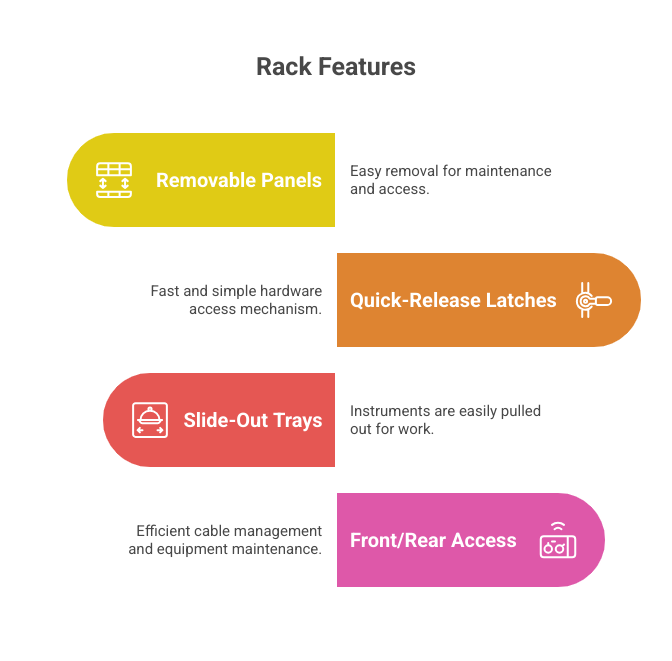

8. Ease of Maintenance and Accessibility

In dynamic test labs, quick access to hardware is essential. High-quality racks often include:

• Removable side panels and doors

• Quick-release latches

• Slide-out trays or swivel-mounts for test instruments

• Front and rear access for efficient cable routing

Technicians should be able to update, replace, or troubleshoot equipment without extensive disassembly.

9. Aesthetic and Ergonomic Design

While performance is paramount, the look and feel of your test setup also matter—especially in client-facing labs or demo facilities.

Features like:

• Brushed metal finishes or custom colors

• Ergonomic handle designs

• LED lighting for visibility

• Integrated labeling for sections or devices

These small touches enhance usability and contribute to a more professional environment.

10. Vendor Support and Customization Services

Finally, don’t underestimate the value of post-purchase support. The best racks come with:

• Engineering consultation for rack layout and customization

• Documentation and CAD files for system planning

• Lifecycle support including spares, modifications, and upgrades

Having a reliable partner ensures your rack evolves with your test requirements—whether you're expanding to new markets or scaling production.

Final Thoughts

Choosing a high-quality electronic test equipment rack isn’t just about ticking boxes—it’s about future-proofing your test environment and creating a reliable, efficient, and safe workspace.

From thermal design to EMI shielding and modularity, every feature contributes to improved uptime, accuracy, and adaptability. As testing complexity grows in industries like 5G, EV, and IoT, having the right infrastructure is no longer optional—it’s a strategic necessity.

That’s where Orbis Systems delivers. With decades of experience in designing customized test environments, Orbis Systems offers premium electronic test equipment racks tailored to meet the specific demands of high-performance labs across industries.

Frequently Asked Questions (FAQ)

Q1: What’s the difference between a server rack and a test equipment rack?
A test equipment rack is designed to house heavier, often bulkier lab instruments and includes better cable management, grounding, and thermal options for test-specific use. Server racks are generally optimized for IT equipment.

Q2: Do I need a custom rack or will a standard one suffice?
Standard racks may work for basic setups. However, if you’re running multi-device test environments or require shielding, integrated power, or I/O pass-throughs, a custom rack is usually more efficient and scalable.

Q3: Can electronic test equipment racks be moved easily?
Yes, many high-end racks include heavy-duty casters or shock-absorbing wheels for mobility. Locking mechanisms are also important to secure them once in place.

Q4: How do racks support EMI-sensitive testing?
They can feature conductive coatings, grounding points, and sealed construction to prevent signal interference—crucial in RF, radar, and wireless testing labs.

Q5: Is it possible to upgrade an existing rack for better cable management?
Absolutely. Many vendors offer retrofit solutions like vertical cable managers, lacing bars, and custom panels to enhance older racks.
